SMC CM2 series

SPECIFICATIONS

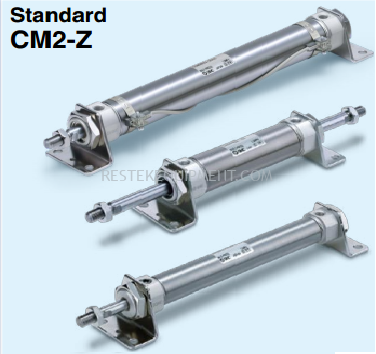

SMC CM2 Series Pneumatic Cylinders :

CM2 B20*25Z – CM2B25*50Z – CM2B32*75Z – CM2B40*100Z – CDM2B20*125Z – CDM2B25*150Z – CDM2B32*250Z – CDM2B40*300Z – CM2B20*50Z – CM2B25*75Z –

CM2B32*100Z – CM2B40*125Z – CDM2B20*150Z – CDM2B25*125Z – CDM2B32*75Z – CDM2B40*50Z

	1. Female rod end available as standard 2. Easy fine adjustment of auto switch position 3. Single clevis and trunnion pivot brackets are available. 4. Part numbers with rod end bracket and/or pivot available bracket (Not necessary to order a bracket for the applicable cylinder separately) 5.With auto switch (CDM2-Z series: CDM2,CDM2W,CDM2K,CDM2KW, CDM2R,CDM2RK,CDM2□P,CDBM2)
Other Data Safety Instructions Actuators/Precautions Auto Switches/Precautions Selection/Technical Dat Simple Specials Made to Order Common Specifications

Type	Series	Action	Bore size (mm)
Standard	CM2-Z	Double acting single rod	20，25，32，40
Standard	CM2-Z	Single acting (Spring return/extend)	20，25，32，40
Standard	CM2W-Z	Double acting double rod	20，25，32，40
Non-rotating rod	CM2K-Z	Double acting single rod	20，25，32，40
Non-rotating rod	CM2K-Z	Single acting (Spring return/extend)	20，25，32，40
Non-rotating rod	CM2KW-Z	Double acting double rod	20，25，32，40
Direct mount	CM2R-Z	Double acting single rod	20，25，32，40
Direct mount Non-rotating rod	CM2RK-Z	Double acting single rod	20，25，32，40
Centralized piping	CM2□P	Double acting single rod	20，25，32，40
With end lock	CBM2	Double acting single rod	20，25，32，40
Low friction	CM2Q	Double acting single rod	20，25，32，40
