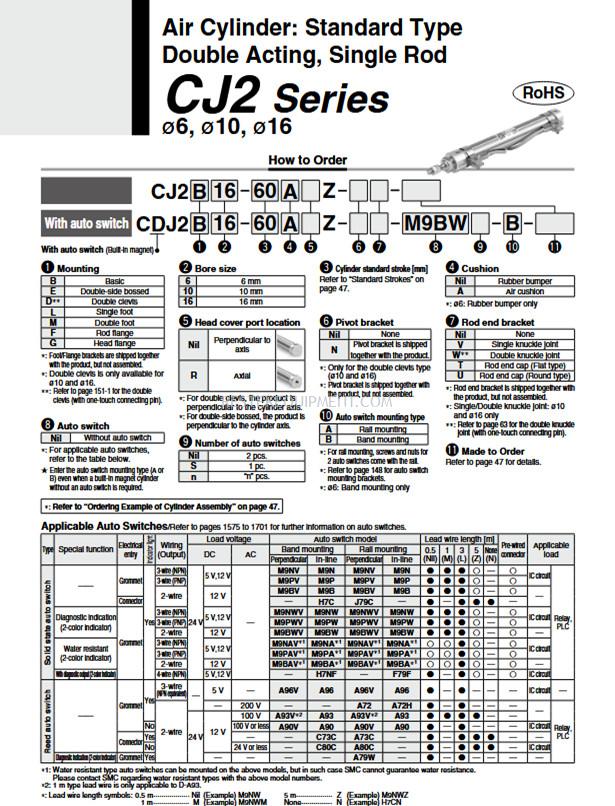

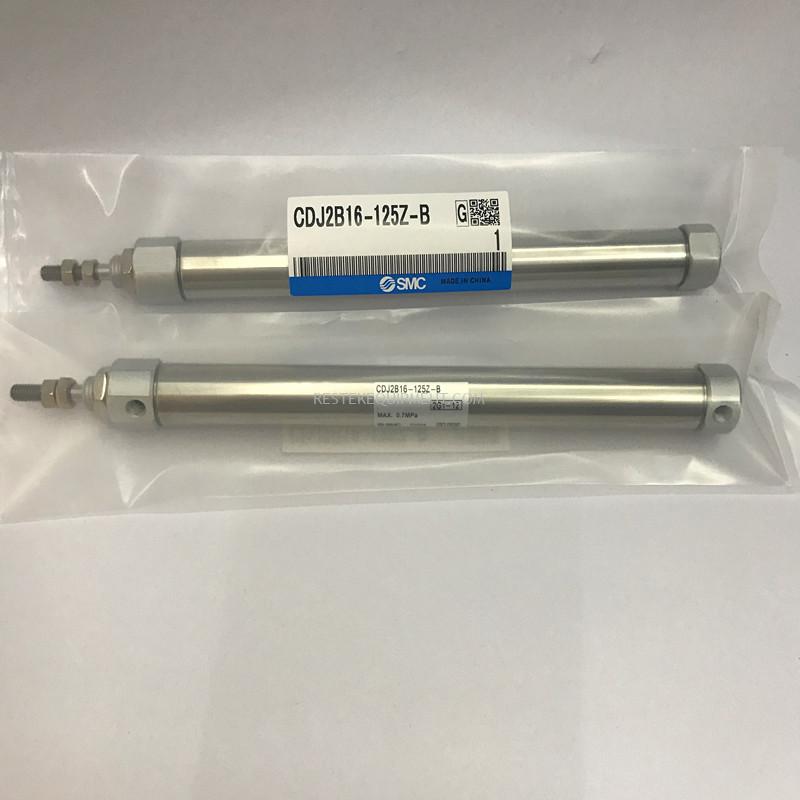

Air cylinder SMC CJ2/CDJ2 Series

– Production: SMC – Japan

Superior characteristics of SMC – CJ2 series of gas cylinders

– Easily adjust the position of the sensor:

Adjusting the position of the sensor by simply loosening the sensor mounted fasteners

– Improved LED display sensor frame

– The shaft head deviation is improved by attaching an additional guide ring to the standard Piston.

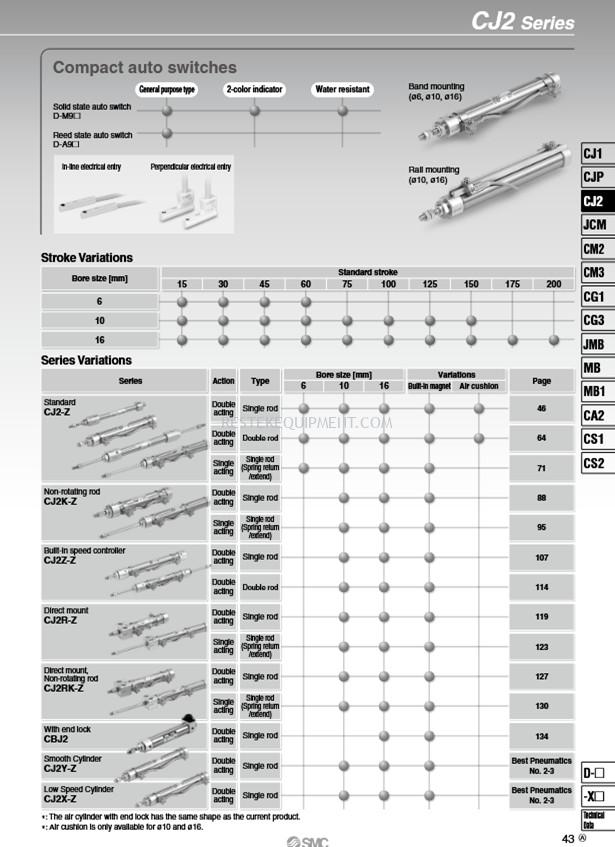

CJ2 series gas cylinders are divided into 2 types:

* CJ2 ø6 gas cylinder: standard, two impact, one shaft

* * CJ2 gas cylinder ø6, ø10, ø16: two-impact type, one axis.

Barrel size	10/16 mm
itinerary	15/30/45/60/75/100/125/150/175/200 mm
Impact type	Two effects, 1 axis
Fluids	Compressed air
Bearings	Basic, bossed sides, double clevis jigs, single leg jigs, double leg jigs, head flange jigs, flange jigs
Destructive pressure	1 Mpa
Maximum operating pressure	0.7 Mpa
Minimum operating pressure	0.06 Mpa
Fluid temperature and environment	-10~70⁰C (no freezing)
Piston speed	50~750 mm/s
Word ring options	Option with word ring or no word ring
